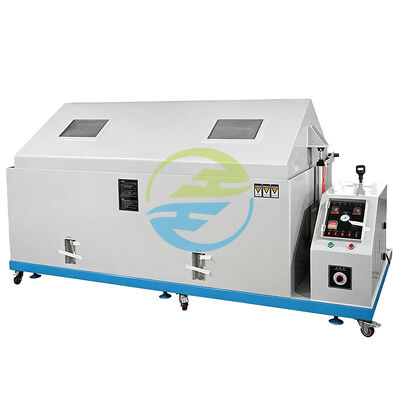

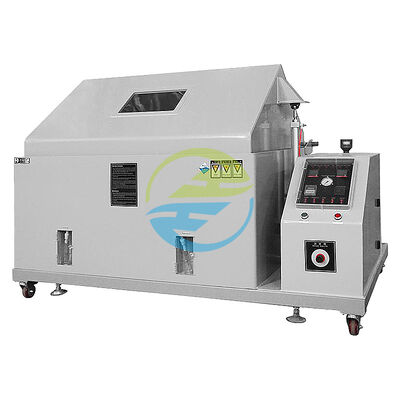

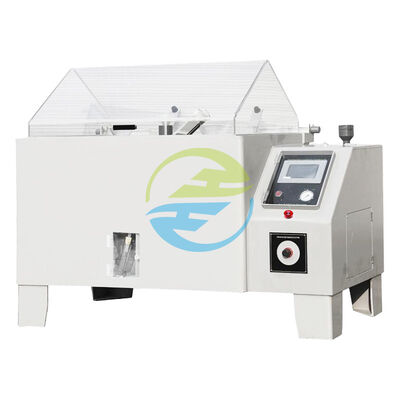

Automotive Seat Belt Corrosion Resistance Tester | Salt Spray Test Chamber for Auto Parts Durability Testing
Designed for precision and long-term reliability, this automotive seat belt corrosion resistance tester simulates salt spray, humidity, and corrosive environments to evaluate the durability of seat belt components. Manufactured directly by HeJin, it ensures compliance with global standards and delivers stable, repeatable test results for automotive safety validation.
Product Overview
In real-world environments—especially coastal and high-humidity regions—automotive components are continuously exposed to corrosive elements such as salt, moisture, and pollutants. Over time, these conditions can degrade critical safety parts like seat belts.
The HeJin Seat Belt Corrosion Resistance Tester is developed as part of our Auto Parts Test Equipment range to simulate these harsh environments through controlled salt spray testing.
Salt spray testing is a widely adopted accelerated corrosion method used to evaluate coatings and materials by exposing them to a saline mist environment .
This system helps manufacturers detect potential corrosion risks early, optimize materials, and ensure compliance before products reach the market.
Features
International Standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HJ-APTE0429 |
| Test Type | Salt Spray Corrosion Test |
| Test Chamber Temperature | 35℃ ±1℃ (NSS), 50℃ ±1℃ (CASS) |
| Saturated Air Temperature | 47℃ ±1℃ (NSS), 63℃ ±1℃ (CASS) |
| Temperature Range | Room Temp ~ 55℃ |
| Temperature Uniformity | ≤ ±2℃ |
| Temperature Fluctuation | ≤ ±0.5℃ |
| Spray Volume | 1.0 ~ 2.0 ml / 80cm² / h |
| Spray Mode | Continuous / Intermittent |
| Salt Solution pH Value | 6.5 ~ 7.2 (NSS), 3.0 ~ 3.2 (CASS) |
| Salt Concentration | 5% NaCl Solution |
| Chamber Material | PVC / PP corrosion-resistant material |
| Air Pressure | 0.2 ~ 0.4 MPa |
Testable Parameters
FAQ
Q1: What is the purpose of salt spray testing?
It evaluates corrosion resistance by simulating harsh environments like marine or industrial conditions.
Q2: Can this tester meet international standards?
Yes, it complies with ISO, ASTM, IEC, and JIS standards.
Q3: What industries use this equipment?
Automotive, electronics, coatings, and materials industries.
Q4: Is customization available?
Yes, chamber size and fixtures can be customized.
Q5: How long can tests run?
From hours to thousands of hours depending on requirements.
